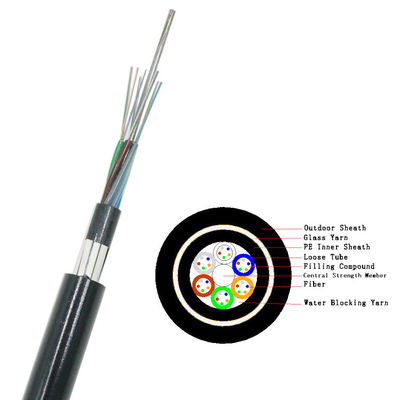

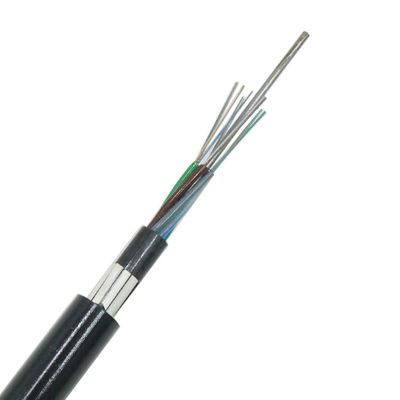

Harga terbaik 24 Core Aerial glass benang Kabel Serat Optik Jenis GYFTY73
|
Jumlah kabel
|
|
|
/
|
4~30
|
32~60
|
62~72
|
72~96
|
|||||
|

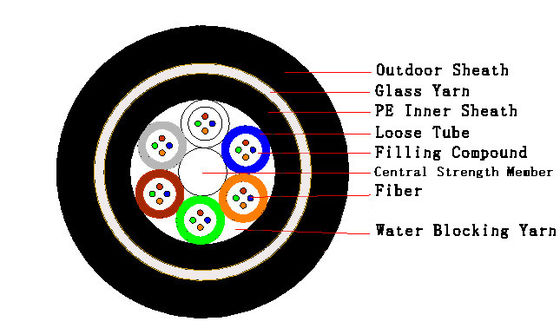

Desain
(Anggota Kekuatan+Tabung&Pengisi) |
|
|
/
|
1+5
|
1+5
|
1+6
|
1+8
|
|||||
|
Jenis serat
|
|
|
/
|
G.652D
|
|
|
|
|||||
|
Anggota Kekuatan Pusat
|
|
Bahan
|
mm
|
FRP
|
|
|
|
|||||
|
|
|
Diameter
(±0,05mm) |
|
1.5
|
1.5
|
2.1
|
2.1
|
|||||
|
Tabung longgar
|
|
Bahan
|
mm
|
PBT
|
|
|
|
|||||
|
|
|
Diameter
(±0,05mm) |
|
1.8
|
2.1 |
2.1
|
2.1
|
|||||
|
|
|
Ketebalan
(±0,03 mm) |
|
0,32
|
0,35
|
0,35
|
0,35
|
|||||
|
|
|
MAX.NO./per
|
|
6
|
12
|
12
|
12
|
|||||
|
Lapisan Penghalang Air
|
|
Bahan
|
/
|
Kompleks Banjir
|
|
|
|
|||||
|
Sarung Dalam
|
|
Bahan
|
mm
|
MDPE
|
|
|
|
|||||
|
|
|
Ketebalan
|
|
0,9 (nominal)
|
|
|
|
|||||
|
|
|
warna
|
|
hitam.
|
|
|
|
|||||
|
Anggota Kekuatan Tambahan
|
|
Bahan
|
/
|
Benang Kaca
|
|
|
|
|||||
|
Sarung Luar
|
|
Bahan
|
mm
|
MDPE
|
|
|
|
|||||
|
|
|
Ketebalan
|
|
1,8 (nomina)
|
|
|
|
|||||
|
|
|
warna
|
|
hitam.
|
|
|
|
|||||
|
Diameter Kabel (± 0,2mm)
|
|
|
mm
|
11.0
|
11.6
|
12.2
|
13.5
|
|||||
|
Kabel Wetght (±10.0kg/km)
|
|
|
kg/km
|
102
|
115
|
130
|
150
|
|||||
|
Koefisien atenuasi
|
1310nm
|
|
dB/km
|
≤0,35
|
|
|
|
|||||
|
|
1550nm
|
|
≤0,21
|
|
|
|
|
|||||
